Concealed Drainage Systems for aluminum windows in Storm Zones

In coastal regions and storm-prone climates, driving rain and positive wind loads challenge window weatherproofing. Learn how concealed cascade drainage engineering eliminates rainwater backflow, preserves frame aesthetics, and achieves Class 9A water tightness.

1. The Vulnerability of Traditional Drainage Weep Holes

Conventional aluminum window profiles utilize exposed horizontal weep holes drilled into the bottom exterior sill frame, often covered by external plastic drainage caps. During standard light rain, this basic gravity system allows water to exit freely.

However, during heavy typhoons or coastal storms, direct frontal wind pressures act as a physical barrier against these open slots. Trapped water builds up inside the frame profile track and is forced backward into the interior building structure. Furthermore, exterior plastic weep caps rapidly degrade and fall off under intense UV exposure, creating unsightly facade defects and wind-whistle noise.

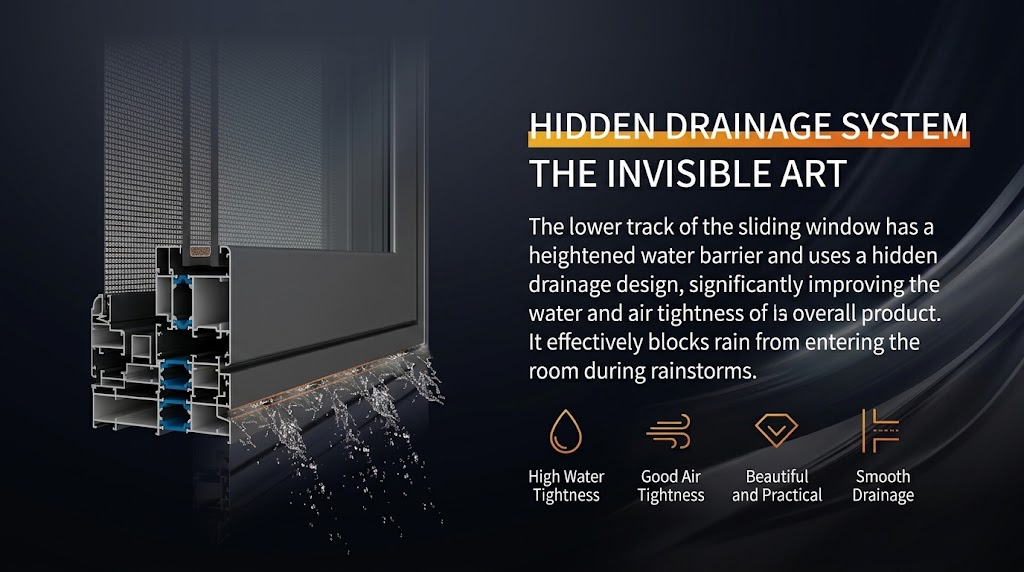

2. Core Engineering Principles of Concealed Cascade Drainage

Modern stormproof systems utilize a multi-chamber internal water management architecture:

3. Performance Comparison: Traditional Weep Holes vs Concealed Drainage

4. Certified Engineering Specifications & Testing Ratings

5. Sourcing & Installation Guidelines for Project Contractors

• Sub-Sill Flashing Coordination: Verify that sub-sill flashing pans and continuous drainage membranes are installed beneath window frames to catch and channel structural facade condensation safely outward.
• Sub-Floor Drainage Clearance: For flush threshold sliding and bifold Doors, coordinate embedded floor drainage channels with concrete contractors to ensure clear water flow away from the foundation.
• Maintenance & Anti-Clogging: Specify concealed drainage profiles featuring removable internal debris grates, allowing quick visual inspection and easy cleaning during routine building maintenance.
