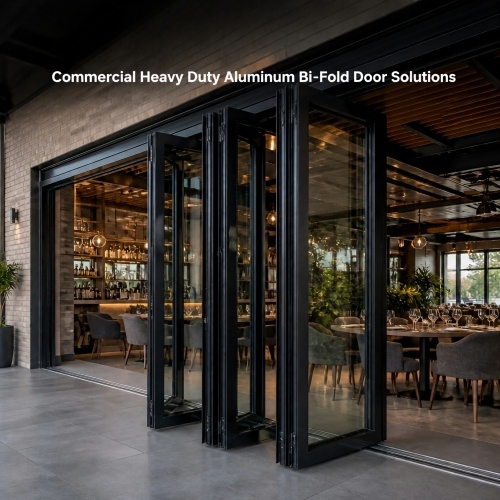

Modern commercial developments demand adaptable spaces that merge indoor comfort with outdoor accessibility. Traditional fixed facades often constrain usable floor areas and restrict pedestrian flow. Heavy-duty aluminum bi-fold door systems solve this structural limitation by concertina-folding multiple glass panels to the side, creating expansive, barrier-free openings up to 90% of the total frame width.
| Engineering Metric | Standard Folding Systems | Heavy-Duty Architectural Bi-Fold | Project Advantage |
|---|---|---|---|
| Max Panel Load | Up to 90 kg per sash | Up to 180 - 250 kg per sash | Accommodates oversized double/triple glazed acoustic units |
| Profile Wall Thickness | 1.4 - 1.6 mm | 2.0 - 3.0 mm structural alloy (6063-T6) | High resistance to torsional stress and heavy wind pressure |
| Clear Opening Height | Up to 2.4 m | Up to 3.5 m continuous height | Expansive, floor-to-ceiling panoramic visual spans |
| Threshold Design | High-step weather lip (35 mm+) | Flush / low-profile recessed track | Barrier-free ADA compliance and seamless floor transition |
| Thermal Performance | Non-broken cold bridge frame | Polyamide thermal break (PA66 GF25) | Low U-value (1.6 - 2.0 W/m²K), reduces HVAC energy loads |
Application: Storefront dining zones & patio serveries.
Impact: Connects outdoor seating in peak weather to maximize floor density and per-table turnover.
Application: Large partition walls connecting event halls with terraces.
Impact: Flexible partition with high sound isolation (35 - 42 dB) when fully closed.
Application: Wide-span product entry points & automotive perimeters.
Impact: Unobstructed multi-meter clearance for moving oversized goods and exhibition cars.
Heavy-duty 304 stainless steel multi-wheel carriers distribute dynamic weight evenly across overhead tracks, preventing roller jamming, track grinding, and sash sagging over continuous commercial cycling.
Fiberglass-reinforced polyamide thermal strips (PA66 GF25) isolate inner and outer frames, eliminating condensation build-up and preserving interior thermal balance in extreme weather conditions.
Odd-number panel configurations (3, 5, or 7 panels) allow a single primary access door to operate independently as a standard swing entry without sliding the entire folding array.
Continuous anti-pinch EPDM rubber gaskets cushion panel junctions against finger entrapment while creating an airtight barrier against dust, heavy rain, and external urban noise.
Q: Can heavy-duty bi-fold doors accommodate hurricane-rated laminated glass?
A: Yes. The deep glazing pocket accepts insulated glass configurations up to 38 mm thick, including SGP or PVB laminated impact glass for severe coastal zones.
Q: What surface finishes are available for harsh environmental exposure?
A: Units can be finished with AAMA-compliant AkzoNobel architectural powder coatings, 3-coat fluorocarbon PVDF, or high-micron anodized layers to resist salt-spray corrosion and UV fading.
Planning an architectural build, storefront renovation, or hospitality project requiring heavy-duty aluminum bi-fold door systems? Our engineering team provides direct support from blueprint analysis to export logistics.
